Description

The Rover Boost Controller is a 10 Amp boosting Maximum PowerPoint Tracking (MPPT) charge controller engineered to charge a 36V or 48V battery bank with just one to two 36-cell solar panels. This powerful controller is the perfect fit for charging batteries in places with limited space for solar, such as a golf cart. The Rover Boost features 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging presets for AGM/Sealed, Gel, Flooded, and Lithium batteries. It also supports the latest Bluetooth software, giving you the option to add a Bluetooth module for remote monitoring and setting adjustments. This handy controller has numerous battery bank, controller, and solar electronic protections for peace of mind, making it an optimized system you can trust.

If you have any questions regarding this product, please submit a case !

99% MPPT Charging Efficiency

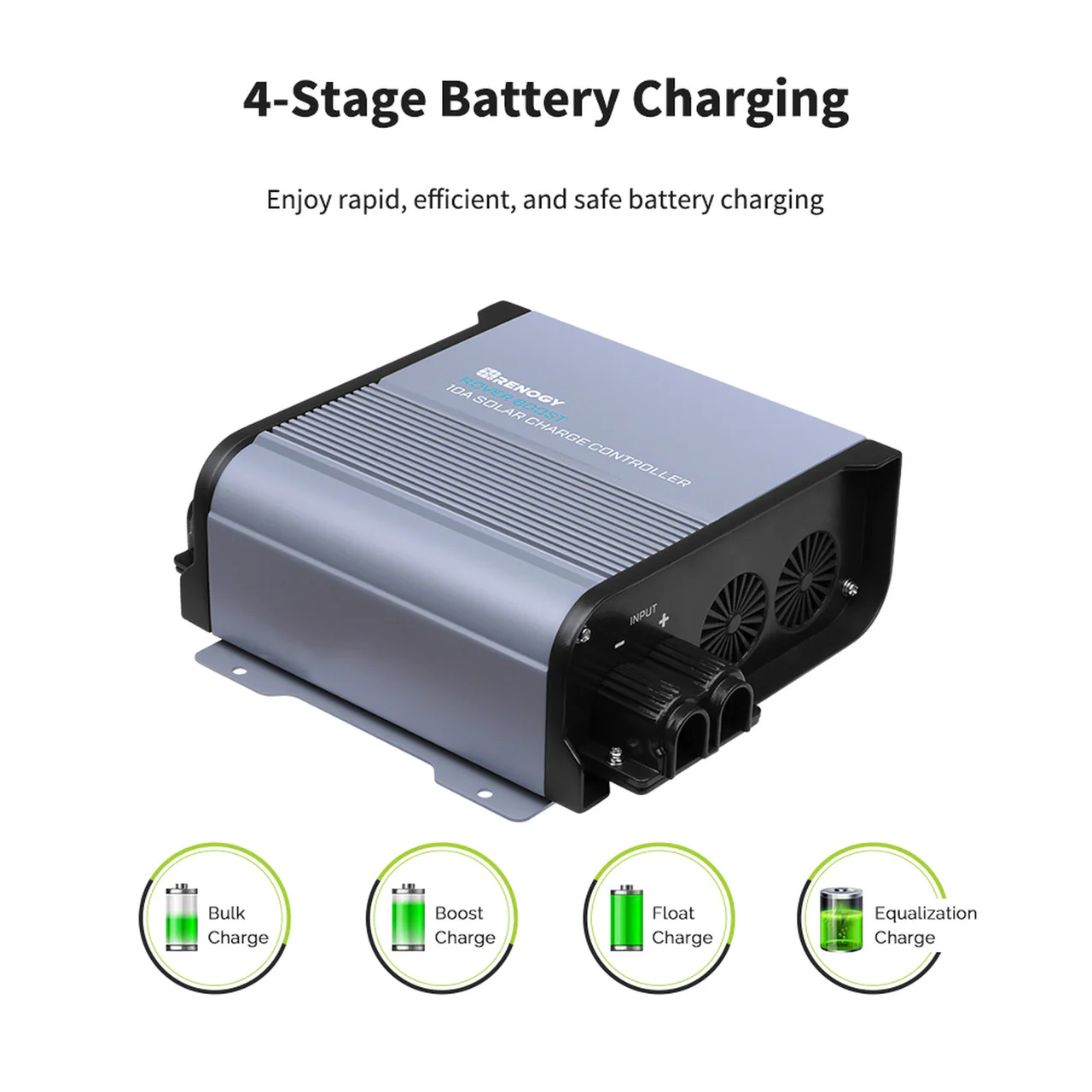

Advanced MPPT Technology with minimum 99% tracking efficiency and 90% charge conversion efficiency for 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging.

36V/48V Automatic System Recognition of Lead Acid Batteries

4-preset battery charge profiles for AGM/Sealed, Gel, Flooded, and Lithium. User mode also available for a wide variety of applications. User mode also available for customizing charging.

Bluetooth Monitoring

Add a Renogy Bluetooth Module (sold separately) and download the Renogy DC Home App for remote monitoring and customization.

● SKU: RCM-BT2

LED Indicators

Multi-Function LEDs display system information and identify any errors.

Optional: Remote Temperature Sensor

Remote temperature sensor to active temperature compensation function of solar charge controller

● SKU: RTSCC

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

Package Includes

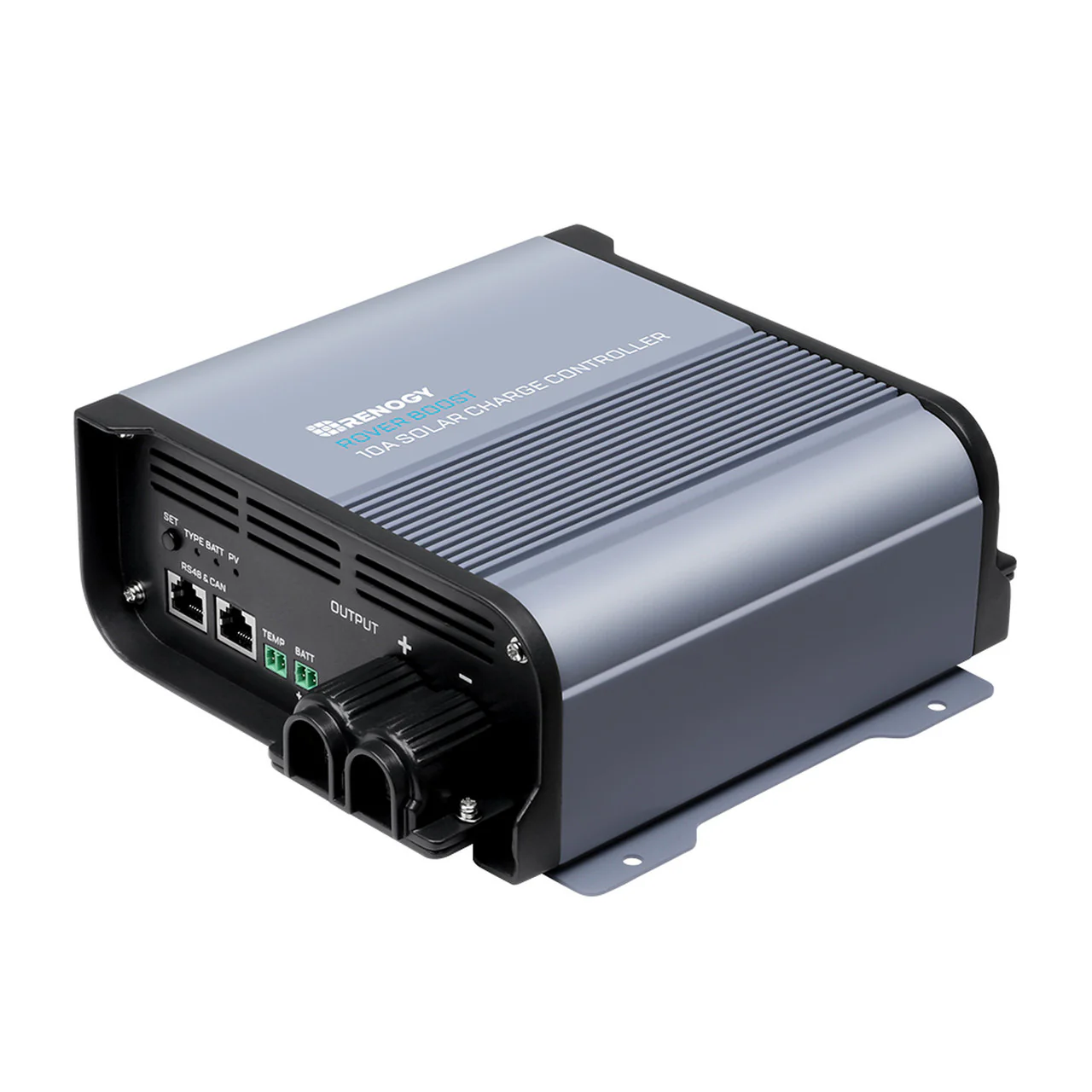

36V/48V Rover Boost 10A MPPT Solar Charge Controller 1 x

36V/48V Rover Boost 10A MPPT Solar Charge Controller
Rated System Voltage: 36V / 48V, Auto Recognition (Non-Lithium)	Rated Charge Current: 10A
Battery Operating Range: 30 ~ 65 VDC	Battery Types : AGM/Sealed, GEL, FLOODED, LFP, USER*
Rated Max Charge Power: PV Input Power: 500W/36V; 650W/48V； Charging Power: 450W/36V; 600W/48V	Max Input Current (short-circuit, Isc) : 35A
Power Limiting Protection: Up to 600W/36V; 800W/48V	Solar Input Voltage Range (VOC): 15 ~ 25VDC / 36V; 15 ~ 40VDC / 48V
MPPT Voltage Range:15 ~ 25VDC / 36V; 15 ~ 40VDC / 48V	MPPT Tracking Efficiency: ≥ 99%
MPPT Charge Conversion Efficiency: ≥ 90%	Idle Consumption: ≤ 2W
Operating Temperature Range:-31°F ~ 149°F / -35℃ ~ + 65℃	Storage Temperature Range: -40°F ~ 176°F / -40℃ ~ + 80℃
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium); 0mV / ℃ / 2V; no compensation (Lithium)	Grounding Type: Common Negative Lug (M3)
Enclosure Rating: IP20	Humidity: 0-95% RH
Dimensions (L x W x D): 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm	Weight: 2.65 lbs / 1.2 Kg
Terminal Range: 16 ~ 2 AWG	Terminal Size: M6-2x1
Communication: RS485 / CAN bus signal	Certification: CE, FCC Part 15 Class B, RoHS

Warranty Information

Charge Controller	2-year material warranty

Certification

1.How Do I Charge a 36V/48V Battery Bank With a 12V Solar Panel?

To charge the 36V/48V battery bank with either PWM or MPPT charge controller, the solar panel voltage should be more than 36V/48V. But in some cases, you may only have just one single 12V or 24V solar panel to charge a 36V or 48V battery bank, especially when you would like to charge batteries in places with limited space for solar, such as a golf cart. The Renogy 10A Rover Boost charge controller is a unique solution to boost the lower solar voltage to charge a high voltage battery bank.

2. I have 2 x 100W panels, can I use both of them for this controller?

Yes, the rated solar input is 500W for 36V batteries and the solar input can not go above 25VDC. The rated solar input is 650W for 48V batteries and the solar input voltage can not go above 40VDC. Connect the panels in parallel when using this controller.

3. In what order do I connect my system, and what operations do I have to do?

The off-grid solar system includes the solar panels, charge controller, batteries, inverter, Bluetooth module, and wirings.

First, the battery should be hooked up to the charge controller with tray cables. Second, then connect your solar panel to your charge controller with adaptor kits.

After the wiring connections, you will need to set your battery type using the SET button, and then the controller can take care of the rest. The LED Indicators and SET buttons are found on the OUTPUT side of the Rover Boost.

4. What type of protection does the Rover Boost Charge Controller have?

Battery Protection: Battery Over Discharge protection , Battery Over Voltage protection, Battery Reverse Polarity protection

Load Protection: Load Overload protection, Load Short Circuit protection, Controller Overheating protection

PV Protection: PV Over Current Protection , PV Short Circuit protection , PV Reverse Polarity protection, Battery overheating protection

5. How many watts can Renogy Rover Boost 10 amp charge controller handle?

The Rover Boost charge controller can work with standard off-grid 12/24V solar panels with PV Input Power: 500W/36V; 650W/48V, and Solar Input Voltage Range (VOC) 15 ~ 25VDC / 36V, 15 ~ 40VDC / 48V.

6. What does 10A on MPPT charge controller mean?

10A represents the max amount of amps the controller can output going INTO THE BATTERIES.

7. What are the recommended wiring gauge and ring terminal sizes?

The Rover Boost accepts ring terminals or lugs. Due to the terminal housing, ring terminals must comply with the instructions manuals.

8. How can I design a 200W solar and 48V battery system?





Please click the links below to download Manual:
